UK Cylinders

The UK's widest range of heat pump & buffer cylinder solutions

All UK cylinder heat pump cylinders feature a unique high flow, high gain, full bore coil design which has been manufactured by UK cylinders with the intention to provide superior performance. The FlowCyl heat pump cylinder is fitted with a market leading high efficiency heat exchanger (coil) with a rapid transfer of the low temperature inputs of ground & air source heat pumps.

UK Cylinder range covers : Pre Plumbed, Standard Heat Pump, Slimline Pre Plumbed, Heat Pump Slimline, Heat Pump & Buffer Combined Pre Plumbed, Heat Pump & Buffer Combined, Heat Pump Solar Twin Coil and Heat Pump Horizontal.

Heat Pump Pre Plumbed

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (KG)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCHPP2120	120L	120	54	172	888	545	1.61	1.06	42	B
FCHPP2150	150L	150	58	208	1075	545	2.08	1.22	44	B
FCHPP2170	170L	170	63	230	1203	545	2.08	1.63	68	C
FCHPP3200	200L	200	72	267	1389	545	2.97	1.7	71	C
FCHPP3250	250L	250	75	319	1701	545	2.97	1.99	83	C
FCHPP3300	300L	300	80	360	1924	545	2.97	2.96	94	C
FCHPP3400	400L	400	78	477	1613	690	4	2.2	92	C
FCHPP3500	500L	500	94	591	1975	690	4	2.42	101	C
FCHPP3600	600L	600	105	674	2139	690	4	2.68	112	C

File	Category	Download Link
UK Cylinders brochure		Download

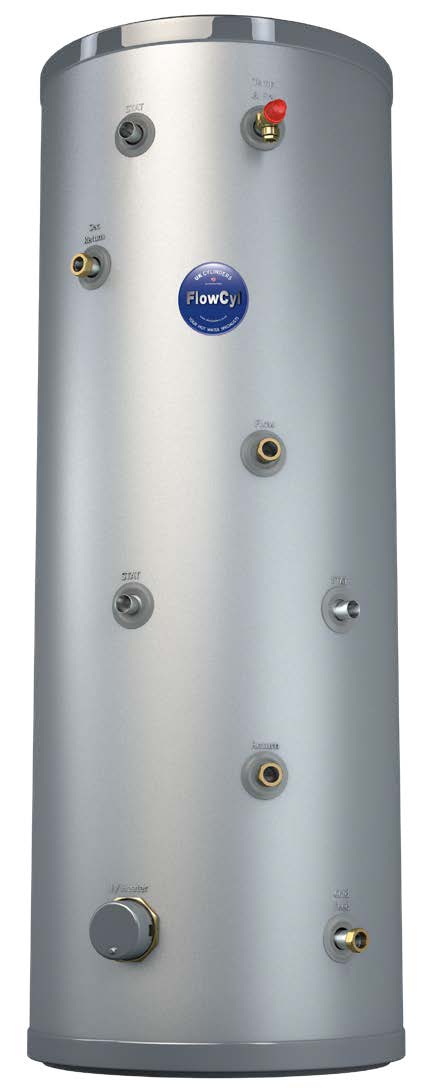

Heat Pump Cylinder

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCHPD3120	120L	120	27	145	888	545	1.61	1.06	42	B
FCHPD3150	150L	150	31	181	1075	545	2.08	1.22	44	B
FCHPD3170	170L	170	35	202	1203	545	2.08	1.63	68	C
FCHPD3200	200L	200	40	235	1389	545	2.97	1.7	71	C
FCHPD3250	250L	250	45	289	1701	545	2.97	1.99	83	C
FCHPD3300	300L	300	50	330	1924	545	2.97	2.26	94	C
FCHPD3400	400L	400	54	453	1613	690	2.97	2.2	92	C
FCHPD3500	500L	500	57	554	1975	690	2.97	2.42	101	C
FCHPD3600	600L	600	66	635	2139	690	2.97	2.68	112	C
FCHPD4400	400L	400	78	455	1613	690	4	2.2	92	C
FCHPD4500	500L	500	94	556	1975	690	4	2.42	101	C
FCHPD4600	600L	600	105	637	2139	690	4	2.68	112	C

File	Category	Download Link
UK Cylinders brochure		Download

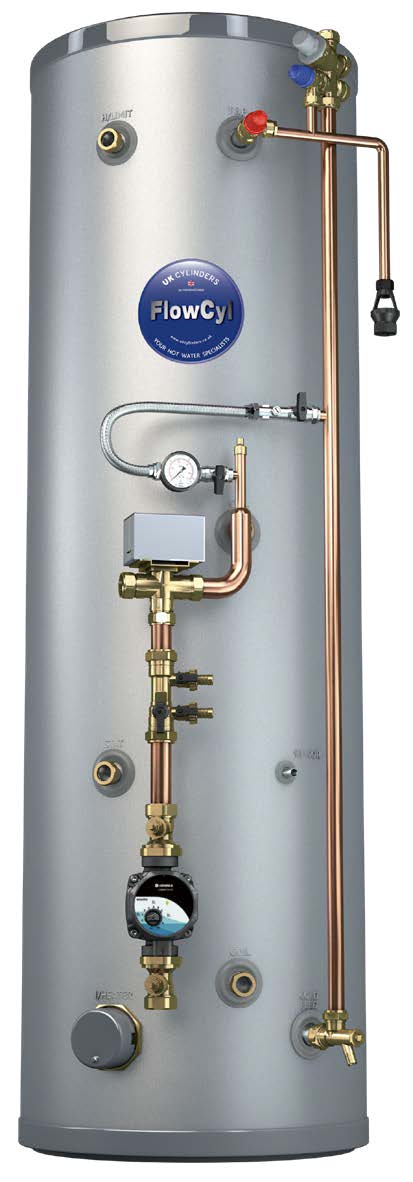

Heat Pump Slimline Pre Plumbed

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCHPPN2120	120L	120	33	158	1228	475	1.61	1.25	52	B
FCHPPN2150	150L	150	39	194	1496	475	1.61	1.42	59	B
FCHPPN2170	170L	170	45	215	1674	475	2.08	1.7	71	C
FCHPPN3200	200L	200	48	248	1941	475	2.08	1.8	75	C

File	Category	Download Link
UK Cylinders brochure		Download

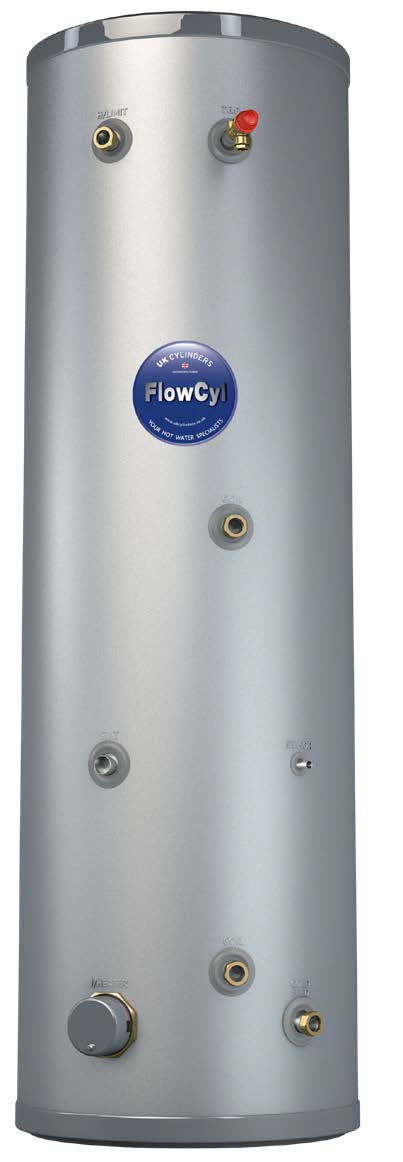

Heat Pump Slimline

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCHPS3120	120L	120	32	158	1228	475	1.61	1.25	52	B
FCHPS3150	150L	150	34	194	1496	475	1.61	1.42	59	B
FCHPS3170	170L	170	45	215	1674	475	2.08	1.7	71	C
FCHPS3200	200L	200	48	248	1941	475	2.08	1.8	75	C

File	Category	Download Link
UK Cylinders brochure		Download

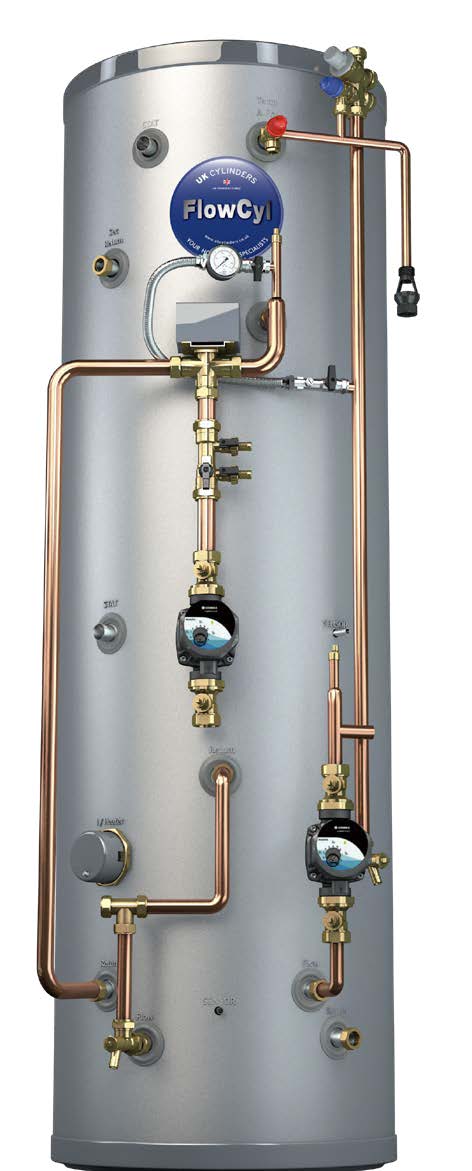

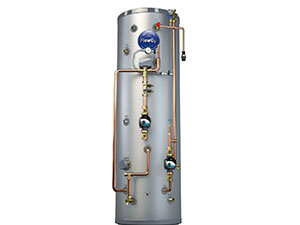

Heat Pump & Buffer Combined Pre Plumbed Options

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCNPPB3012	120/30L	120	43	193	1390	475	1.61	1.25
FCNPPB3015	150/30L	150	46	226	1863	475	1.61	1.42	59	B
FCNPPB5017	170/30L	170	48	249	2041	475	2.08	1.63	68	C
FCHPB5015	150/50L	150	46	242	1485	545	2.08	1.22	44	B
FCPPB5017	170/50L	170	50	270	1603	545	2.08	1.63	68	C
FCPPB5020	200/50L	200	57	307	1801	545	2.97	1.7	71	C
FCPPB5022	225/50L	225	60	364	2048	545	2.97	1.99	83	C

File	Category	Download Link
UK Cylinders brochure		Download

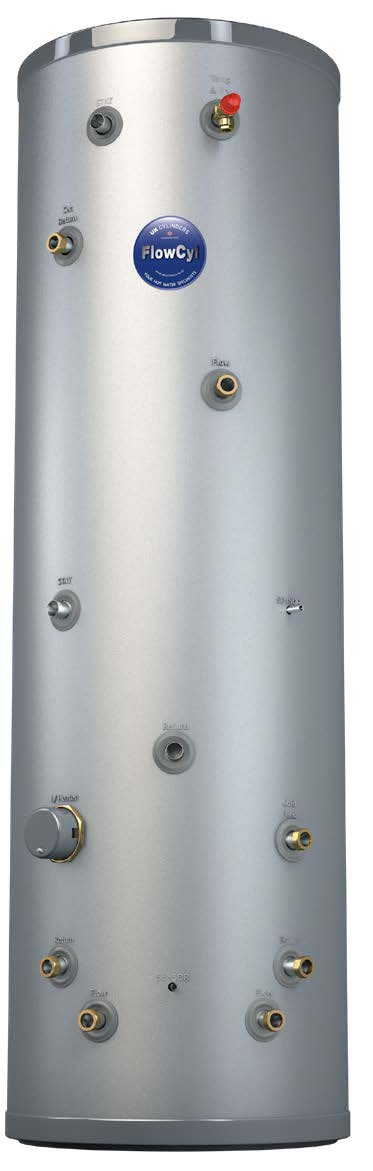

Heat Pump and Buffer Combined

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCNHPB3012	120/30L	120	43	186	1390	475	1.61	1.25	52	B
FCNHPB3015	150/30L	150	46	219	1863	475	1.61	1.42	59	B
FCNHPB3017	170/30L	170	49	260	2041	475	1.61	1.63	68	C
FCPPB5015	150/50L	150	47	249	1485	545	2.08	1.22	44	B
FCHPB5017	170/50L	170	50	263	1603	545	2.08	1.63	68	C
FCHPB5020	200/50L	200	57	300	1801	545	2.97	1.7	71	C
FCHPB5022	225/50L	225	60	360	2048	545	2.97	1.99	83	C

File	Category	Download Link
UK Cylinders brochure		Download

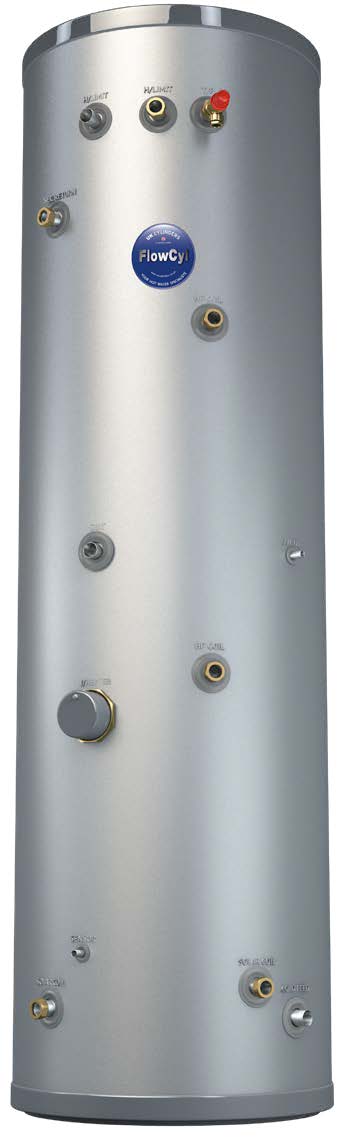

Heat Pump Solar Twin Coil

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Height (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCHPT2170	170L	170	39	208	1203	545	2.08	1.63	68	C
FCHPT2200	200L	200	44	241	1389	545	2.97	1.7	71	C
FCHPT2250	250L	250	46	295	1701	545	2.97	1.99	83	C
FCHPT2300	300L	300	48	336	1924	545	2.97	2.26	94	C
FCHPT2400	400L	400	55	461	1613	690	2.97	2.29	92	C
FCHPT2500	500L	500	58	562	1975	690	4	2.42	101	C
FCHPT2600	600L	600	67	643	2139	690	4	2.68	112	C

File	Category	Download Link
UK Cylinders brochure		Download

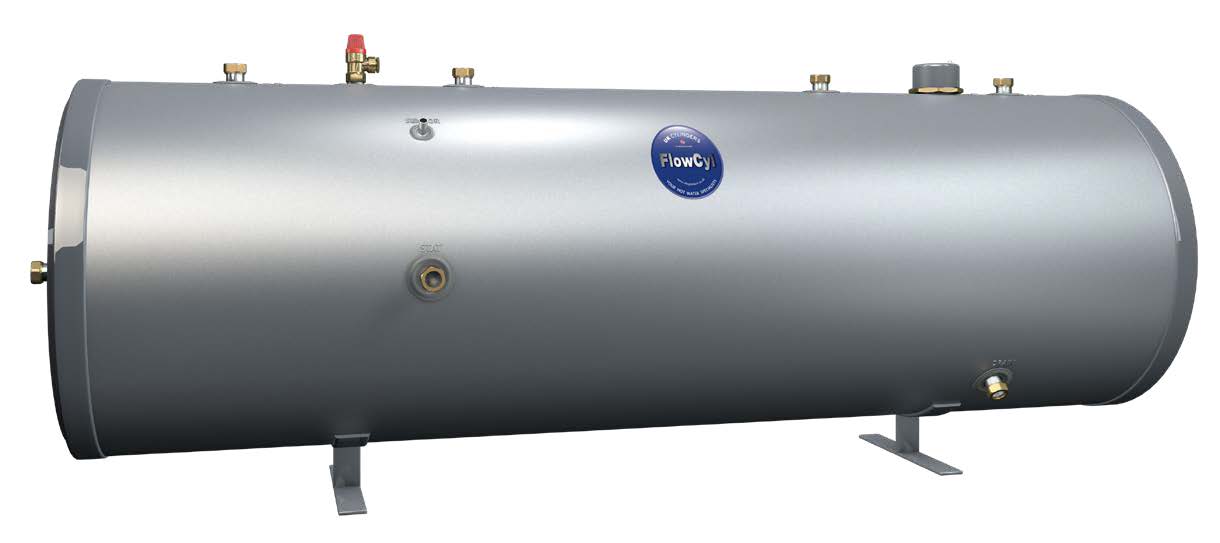

Heat Pump Horizontal

Get a Quote

Product Code	Description	Nominal Capacity (L)	Weight (kg)	Full Weight (kg)	Width (mm)	Diameter (mm)	Heat Pump Coil Surface Area (m2)	Standing Heat Loss (kWh/24h)	Standing Heat Loss (WATTS)	ERP Band
FCHPH3170	170L	170	43	202	1203	545	2.08	1.89	79	C
FCHPH3200	200L	200	49	235	1389	545	2.08	2.01	84	C
FCHPH3250	250L	250	53	289	1701	545	2.97	2.16	90	C
FCHPH3300	300L	300	57	330	1924	545	2.97	2.35	98	C
