Midea

Midea Arctic R290

Game Changing Heating Solutions

Introducing the R290, Midea’s new heat pump that is leading the path to a greener future through more ecofriendly and efficient heating. The M Thermal Arctic heat pump is a low carbon alternative that will heat your home as effectively as a gas boiler, using air as its energy source. With a
small amount of electrical energy the M Thermal Arctic heat pump provides heat and hot water to your home, even in temperatures as low as -20°C. Providing more heat than the electricity used.

A+++ ErP Energy Rating
R290 Refrigerant
Up to a 10-year warranty
35 d (BA) quiet operation
Efficient heating capacity even when working in the -25°C to -10°C air temperature range
Available in single phase capacities of 4 kW – 16 kW, or three phase capacities of 12 kW to 16 kW

View the range

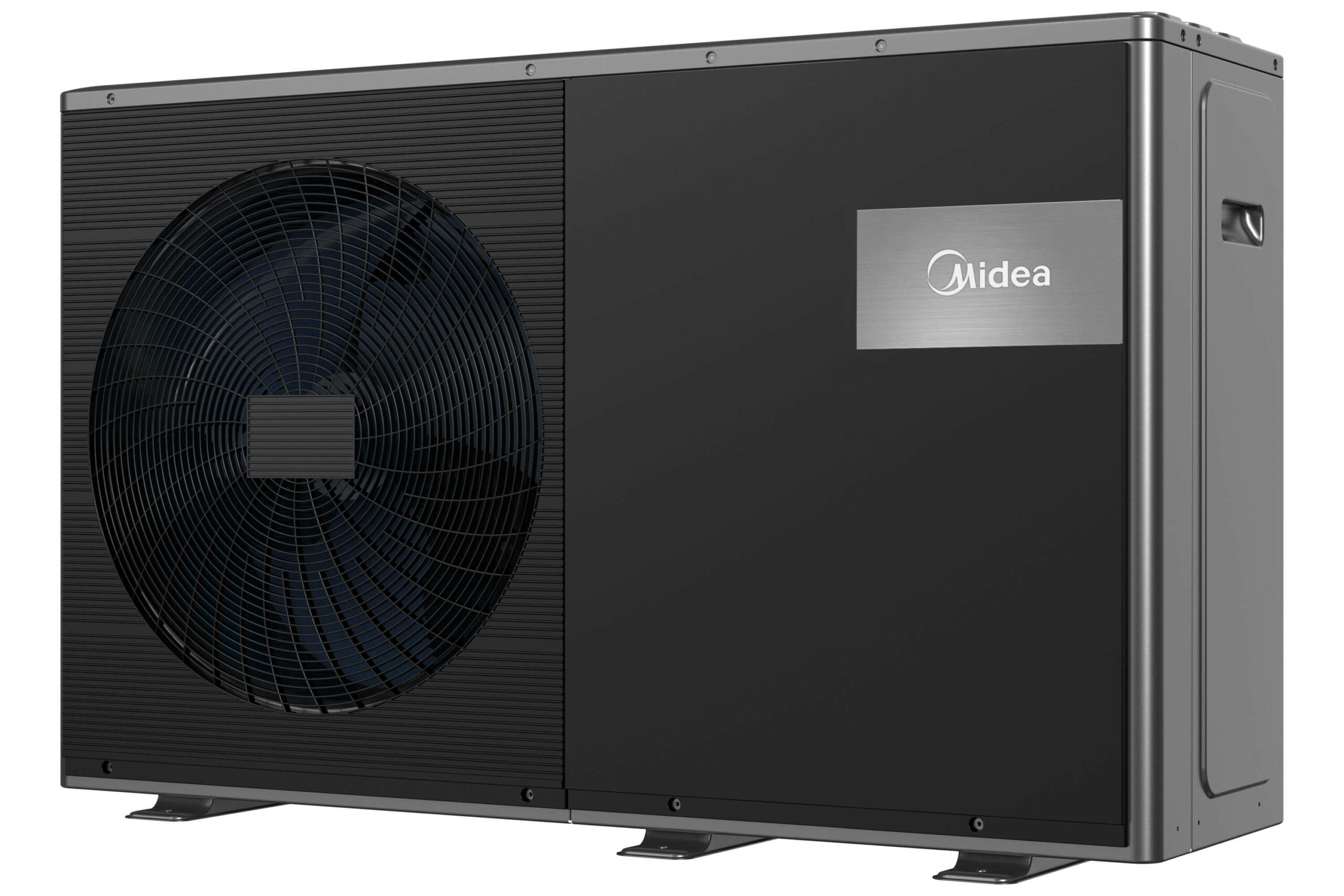

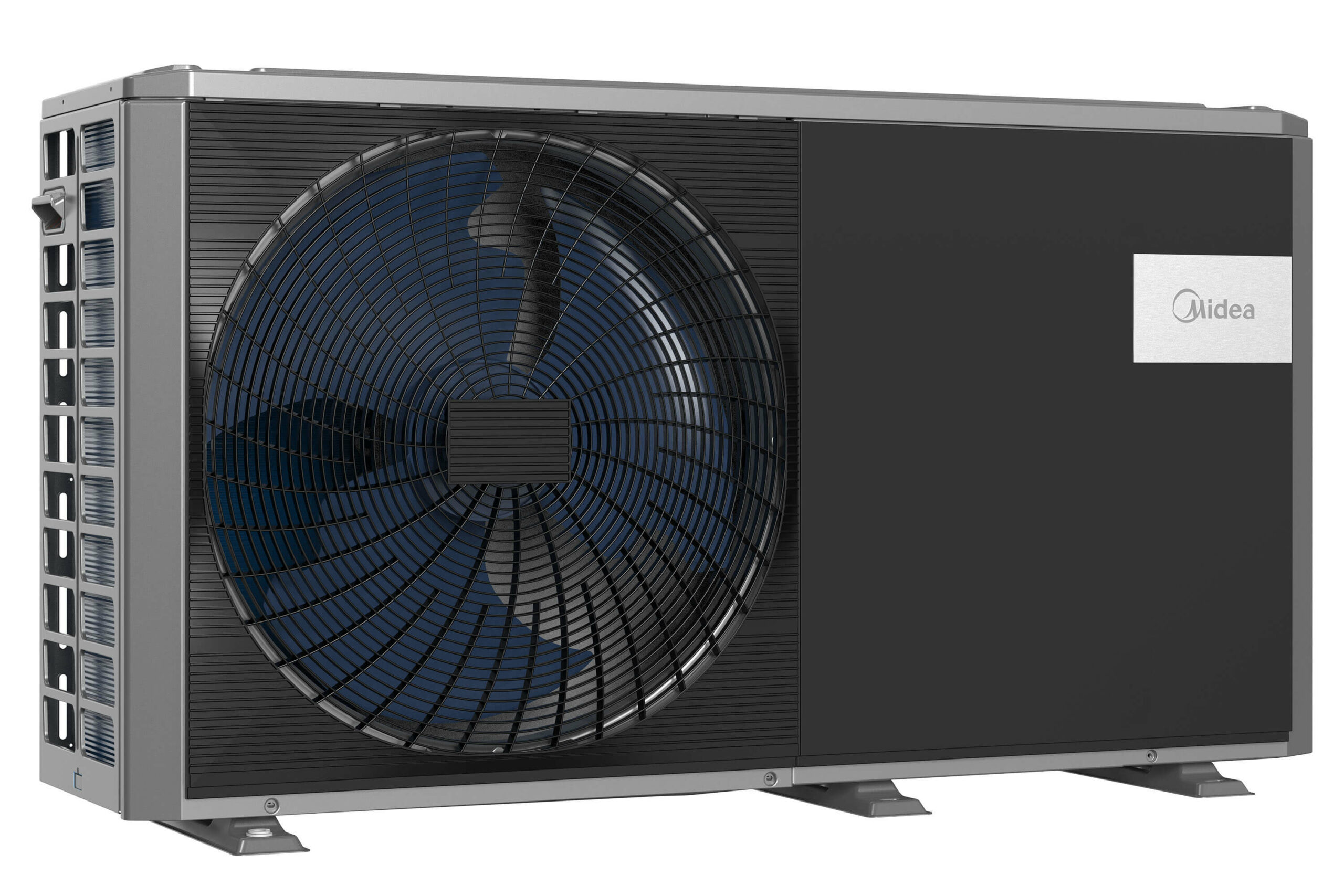

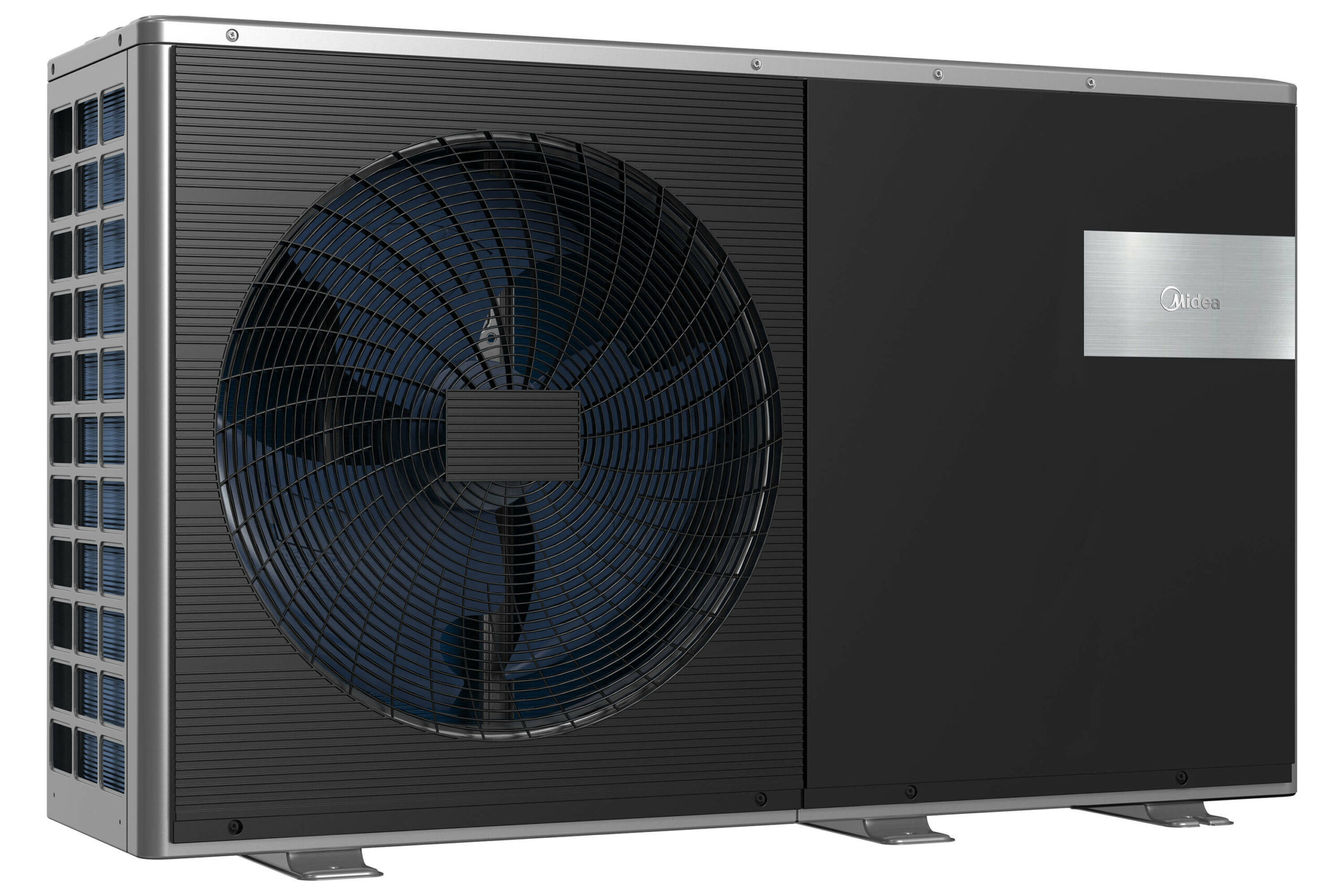

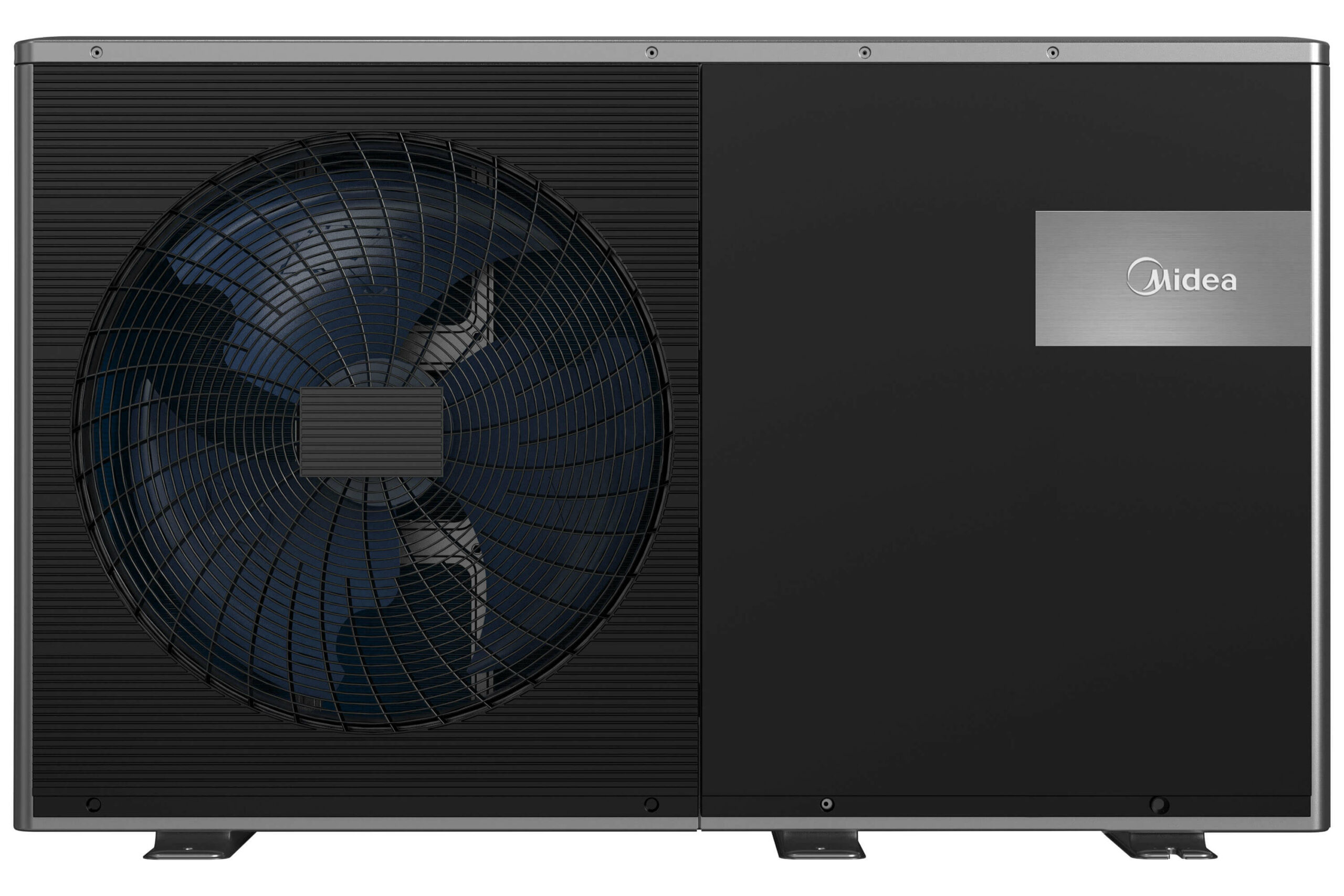

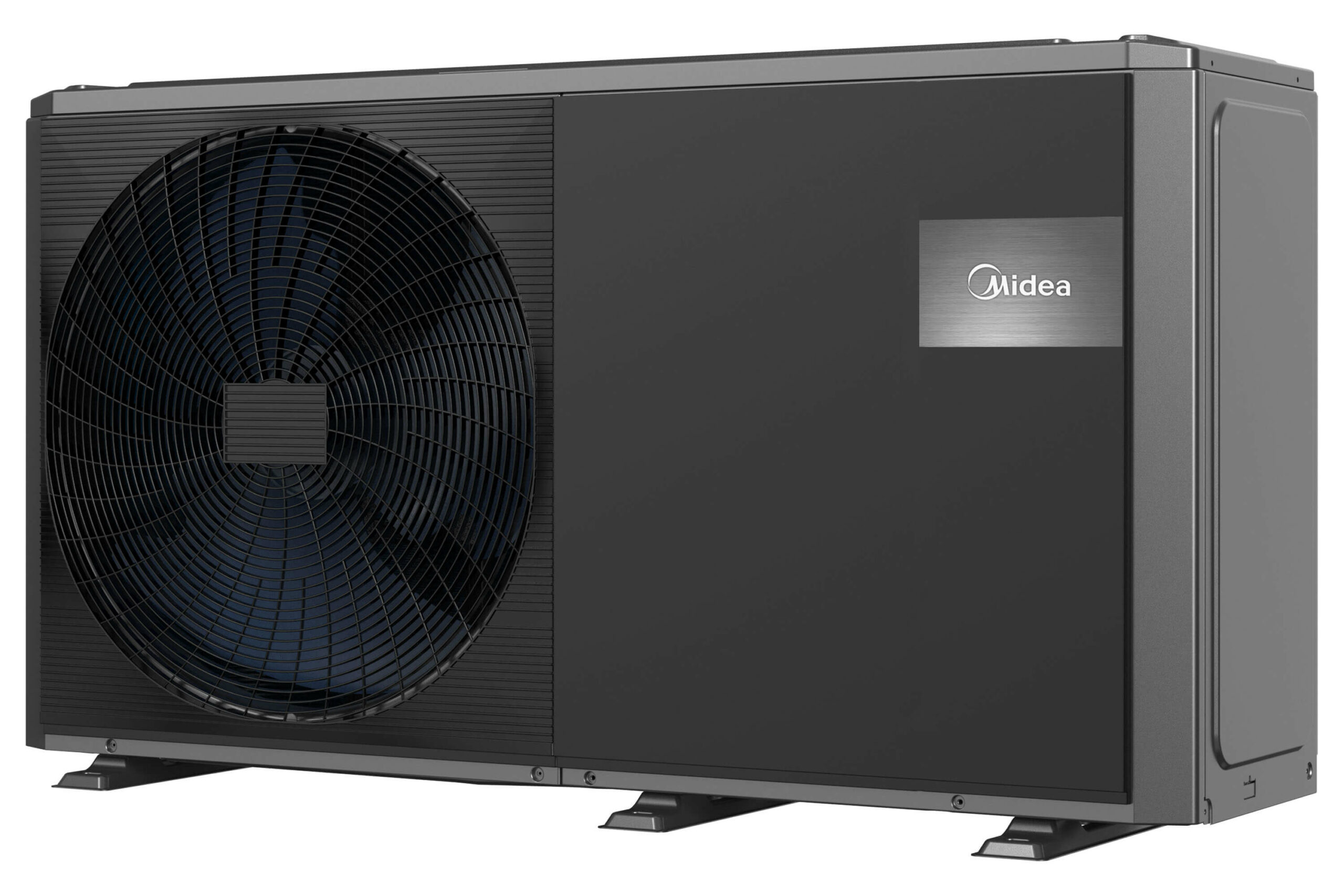

Midea Arctic R290

M Thermal

Midea has welcomed a new addition to their heat pump line-up, the M Thermal Arctic R290, provides an energy efficient solution for heating your home. The M Thermal Arctic R290 uses R290 as its refrigerant.

Get a Quote

Product Code	Phase	Output (kW) -2/50	Dimensions (mm) H x D x W	Weight (kg)	SCOP (Efficiency) @ 35°C	SCOP (Efficiency) @ 50°C	Max Temp @ -2 Ambient	Refrigerant	On-board Circ Pump	Sound pressure	Warranty Years (Trained Installers)*
MHC-V4W/D2N7	1ϕ	4.4	717 x 426 x 1299	90	5.07	3.79	75	R290	Yes	44	up to 10*
MHC-V6W/D2N7	1ϕ	5.8	717 x 426 x 1299	90	4.89	3.82	75	R290	Yes	46	up to 10*
MHC-V8W/D2N7	1ϕ	7.8	865 x 523 x 1385	117	5.19	3.82	75	R290	Yes	48	up to 10*
MHC-V10W/DN7	1ϕ	8.4	865 x 523 x 1385	117	5.07	3.82	75	R290	Yes	49	up to 10*
MHC-V12W/D2N7	1ϕ	11.3	865 x 523 x 1385	135	4.67	3.62	75	R290	Yes	51	up to 10*
MHC-V14W/D2N7	1ϕ	12	865 x 523 x 1385	135	4.63	3.61	75	R290	Yes	52	up to 10*
MHC-V16W/D2N7	1ϕ	12	865 x 523 x 1385	135	4.59	3.57	75	R290	Yes	56	up to 10*
MHC-V12W/D2RN7	3ϕ	11.3	865 x 523 x 1385	137	4.67	3.62	75	R290	Yes	51	up to 10*
MHC-V14W/D2RN7	3ϕ	12	865 x 523 x 1385	137	4.63	3.61	75	R290	Yes	52	up to 10*
MHC-V16W/D2RN7	3ϕ	13.1	865 x 523 x 1385	137	4.59	3.57	75	R290	Yes	56	up to 10*

File	Category	Download Link
Midea R290 Arctic Mono Leaflet		Download
Midea R290 Arctic Mono Installer Leaflet		Download
FHP Cloud Leaflet		Download
Midea Warranty T&Cs		Download

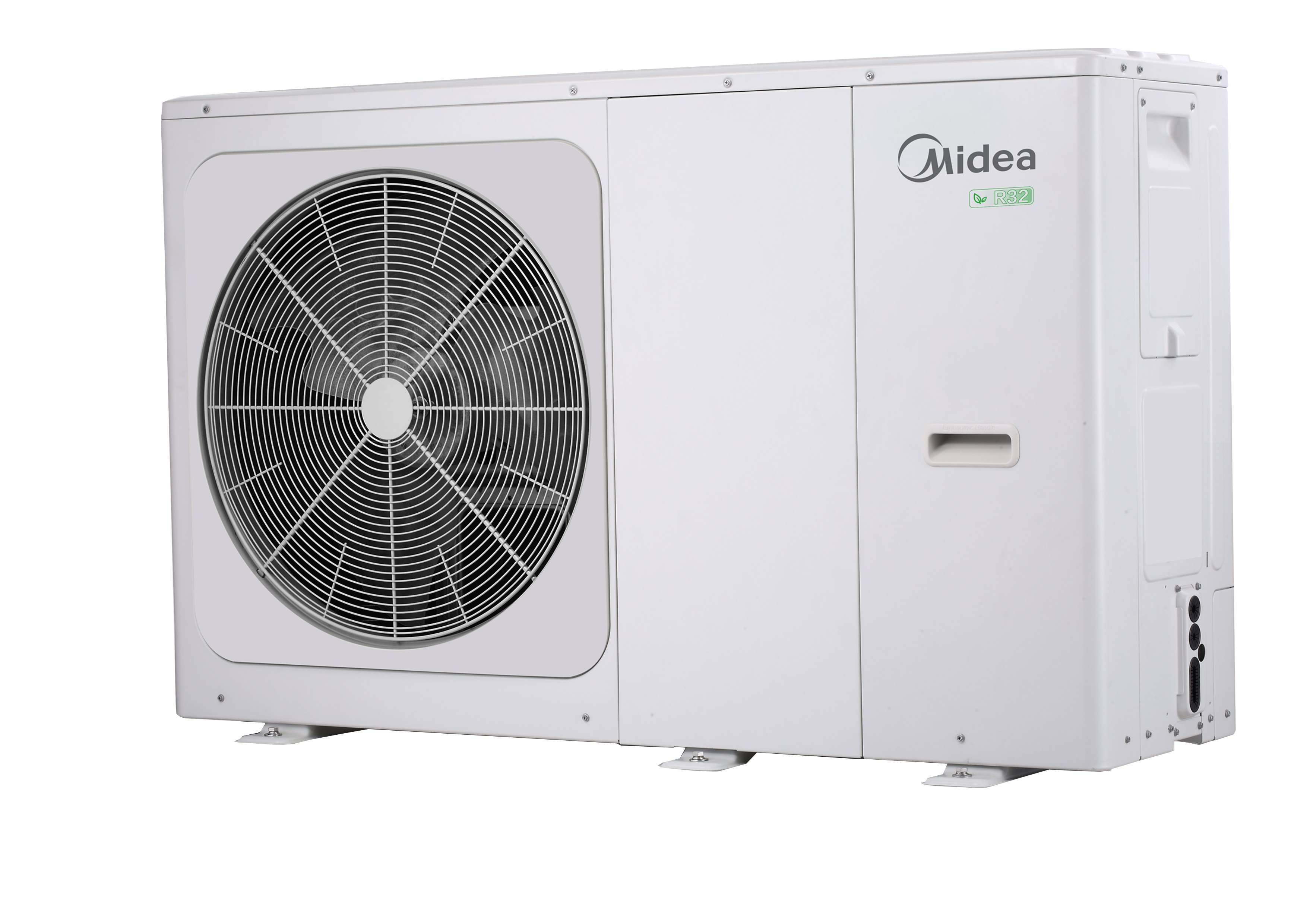

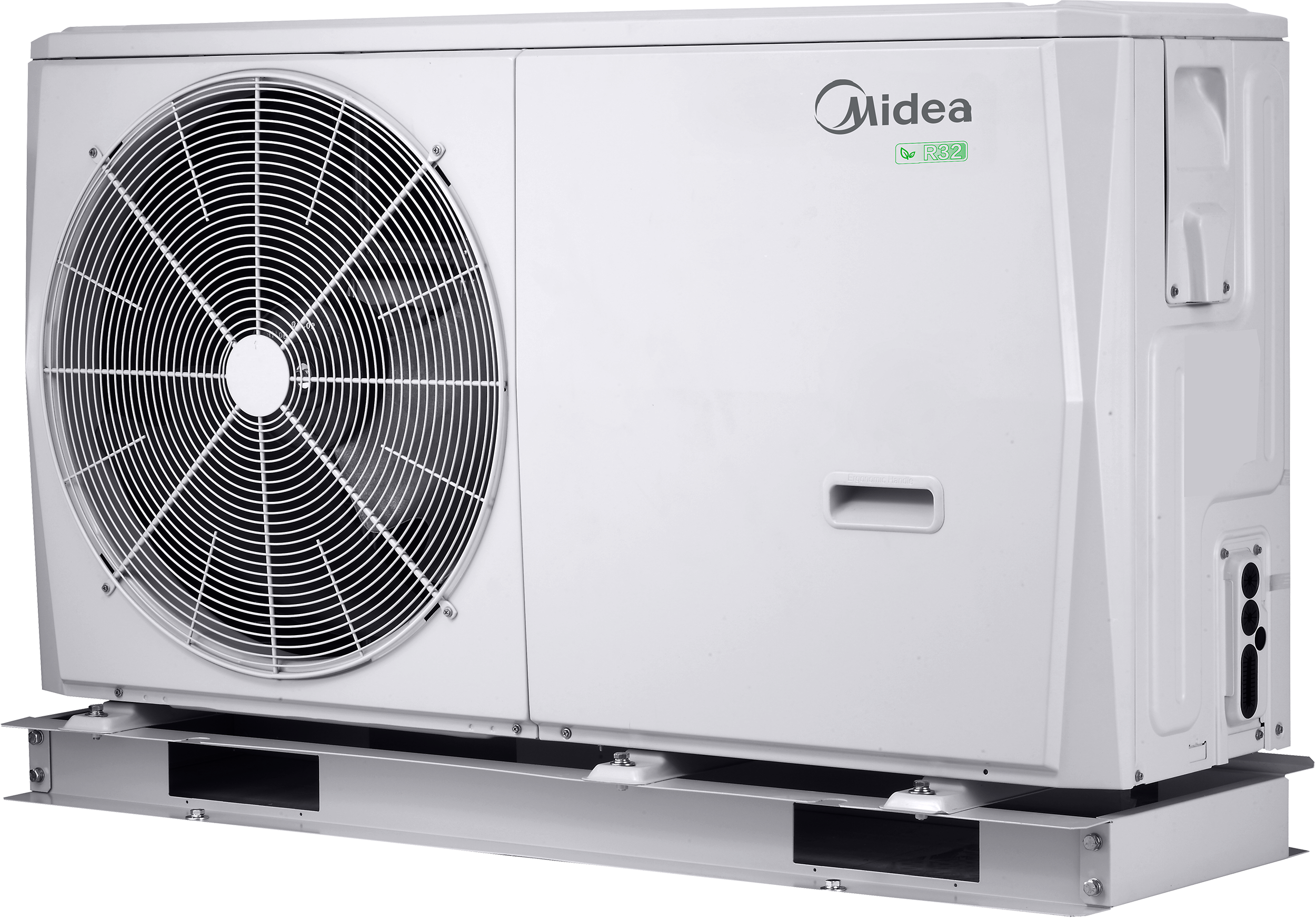

Midea M-Thermal R32

One of the world’s largest home appliance brands

Midea is one of the world’s largest home appliance brands, offering the most comprehensive selection of products in the world to fully serve the needs of day-to-day living at home, at work, or anywhere else you go. Midea is also the world’s number one air-treatment brand*, offering a wide range of commercial, residential and even portable air-conditioners, humidifiers, dehumidifiers and air purifiers, as well as heaters and fans.

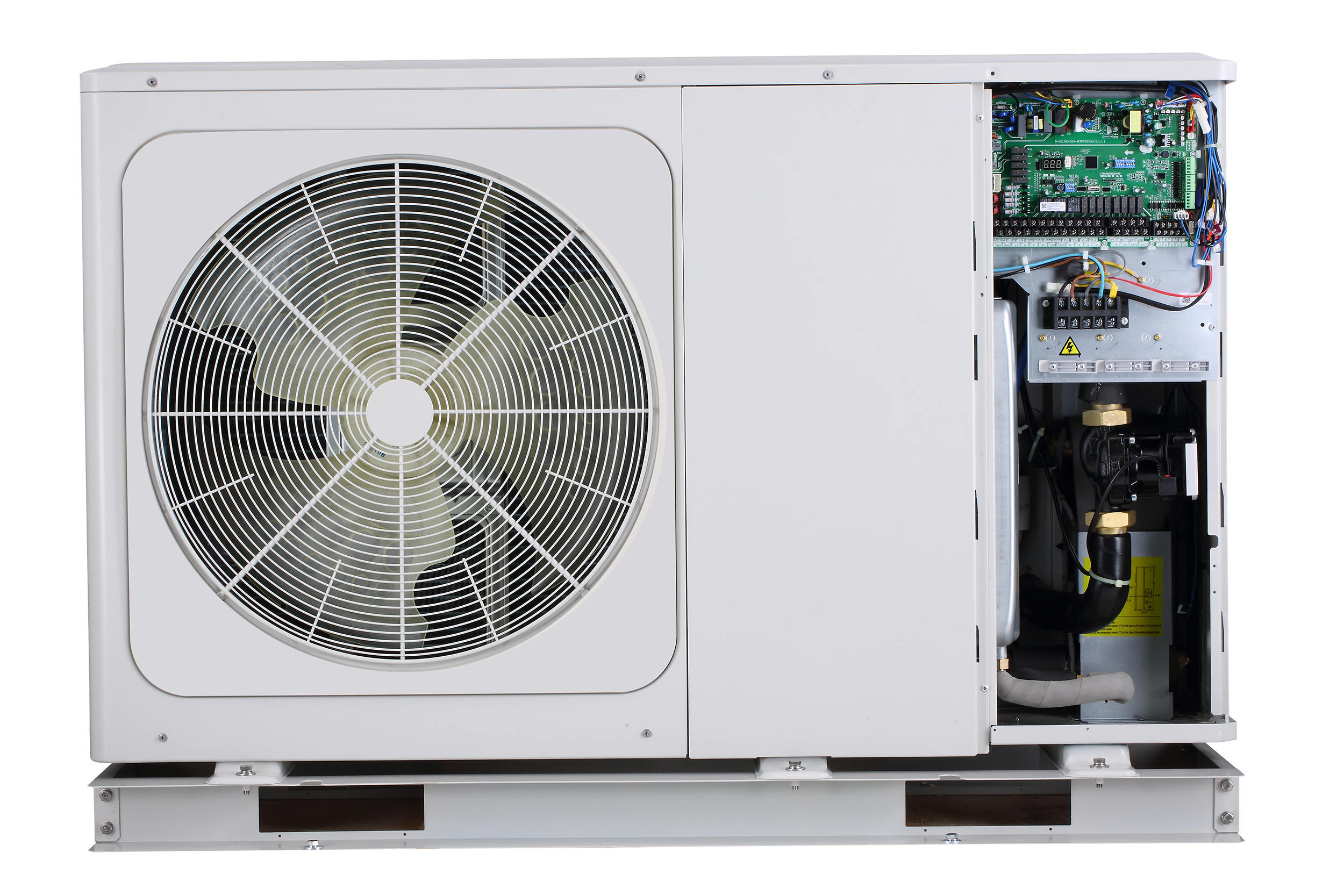

M thermal Mono type has the integrated design with built-in hydraulic kit and only water pipe is needed to be installed at site.

A+++ ErP Energy Rating
R32 Refrigerant
Up to a 10-year warranty
35 d (BA) quiet operation
Efficient heating capacity even when at -7°C air temperature
Available in single phase capacities of 4 kW – 16 kW, or three phase capacities of 12 kW to 16 kW

View the range

Midea M-Thermal R32

M Thermal

MHC V4 - V16

Get a Quote

Product Code	Output (kW) -2/50	Dimensions (mm) H x D x W	Weight (kg)	SCOP (Efficiency) @ 35°C	SCOP (Efficiency) @ 50°C	Max Temp @ -2 Ambient	Refrigerant	On-board Circ Pump	Sound pressure	Warranty Years (Trained Installers)*
MHC-V4W/D2N8-B	4.2	792 x 400 x 1295	98	4.66	3.56	60	R32	Yes	45	up to 10*
MHC-V6W/D2N8-B	5.7	792 x 400 x 1295	98	4.77	3.72	60	R32	Yes	47.5	up to 10*
MHC-V8W/D2N8-B	7.3	945 x410 x1385	121	5.03	3.67	60	R32	Yes	48.5	up to 10*
MHC-V10W/D2N8-B	8	945 x410 x1385	121	5.03	3.78	60	R32	Yes	50.5	up to 10*
MHC-V12W/D2N8-B	11	945 x 410 x 1385	144	4.67	3.68	60	R32	Yes	53	up to 10*
MHC-V14W/D2N8-B	13	945 x 410 x 1385	144	4.5	3.59	60	R32	Yes	58	up to 10*

File	Category	Download Link
FHP Cloud Leaflet		Download
Midea R32 Heat Pump Leaflet		Download
Midea Tri-Fold with FHP Cloud		Download
Midea Warranty T&Cs		Download
